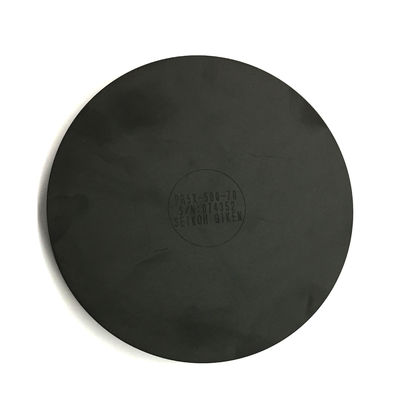

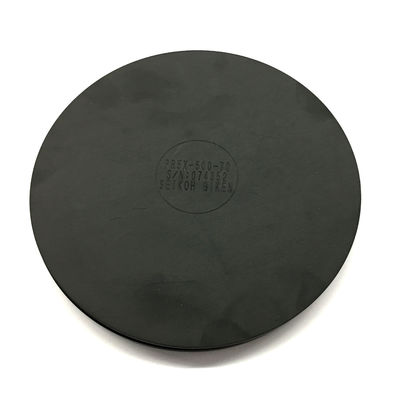

127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding

مكان المنشأ الصين
اسم العلامة التجارية KCO, Kocent Optec Limited
إصدار الشهادات RoHS, ISO
رقم الموديل كيه سي أو-جيج-FC-36
وثيقة fiber optic polishing rubbe...ds.pdf
الحد الأدنى لكمية التفاوض
الأسعار negotiable
تفاصيل التغليف كيس ورقي، علبة كرتون
وقت التسليم 2 ~ 5 أيام بعد الحصول على الدفع
شروط الدفع T/T ، Western Union ، L/C.
القدرة على العرض 200,000 قطعة/شهر

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
p/n كيه سي أو-باد-JP-70 درجة 0.3 ديسيبل، ثلاثي الأبعاد
نطاق التلميع موصل الألياف البصرية حجم القرص 127mm
الموصل الأعلى. 48 موصل آلة آلة تلميع الضغط الزاوية
إبراز

127mm Fiber Optic Polishing Pad,0.3dB Grade Polishing Rubber Pad,3D Polishing Fiber Connector Polishing Pad

,

0.3dB Grade Polishing Rubber Pad

,

3D Polishing Fiber Connector Polishing Pad

اترك رسالة
منتوج وصف
PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm
Product Description

PR5X-500-60 70 75 80 85 90 fiber optic connectors polishing rubber pad 127mm

  • Fiber Optic Polishing Rubber Pad is suitable for grinding optical fiber connectors, including ceramic ferrules, MTP, MPO and other non-standard connectors
  • Widely used in four-point pressure grinding machines and precision engineering SFP-550 series grinding machines
  • Available in multiple degrees (60°, 70°, 75°, 80°, 85°, 90°) for different polishing processes
Applications
  • Fiber optic connector polishing
  • Fiber optic patch cord production
  • Fiber optic pigtail production
  • Fiber optic splitter production
  • Fiber optic fast connector production
Related Machines
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 0 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 1 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 2 127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 3
Specifications
  • Used in grinding spherical surfaces
  • Model: 500-50, 55, 60, 65, 70, 75, 80, 85, 90 (permanent stores)
  • External Dimension: 127*5mm
  • Material: Silica gel
Product Applications
Product Type Application
D
  • Lapping for Fiber optic connector, fiber array, glass pig tail (angle removal, rough grinding, medium polishing, fine finishing)
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal, LED
  • Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)
  • Edge polishing for silicon wafer
SC
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO The final super-precise polishing of optical fiber connector
Detailed Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size Disk: Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Sheet: 114mm*114mm, 152mm*152mm (6inch), 228*228mm (9inch)
Note: Other film sizes are available upon request.
Fiber Optic Patch Cord Production Process
127mm Silica Gel Fiber Optic Polishing Pad with 0.3dB Grade and 3D Polishing for Precision Grinding 4
OEM/ODM Service

We offer custom branding services for your products including cables, packaging bags, labels, and more. Contact our sales team for personalized support.

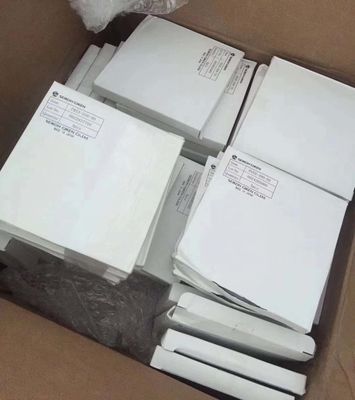

Packing & Shipping
